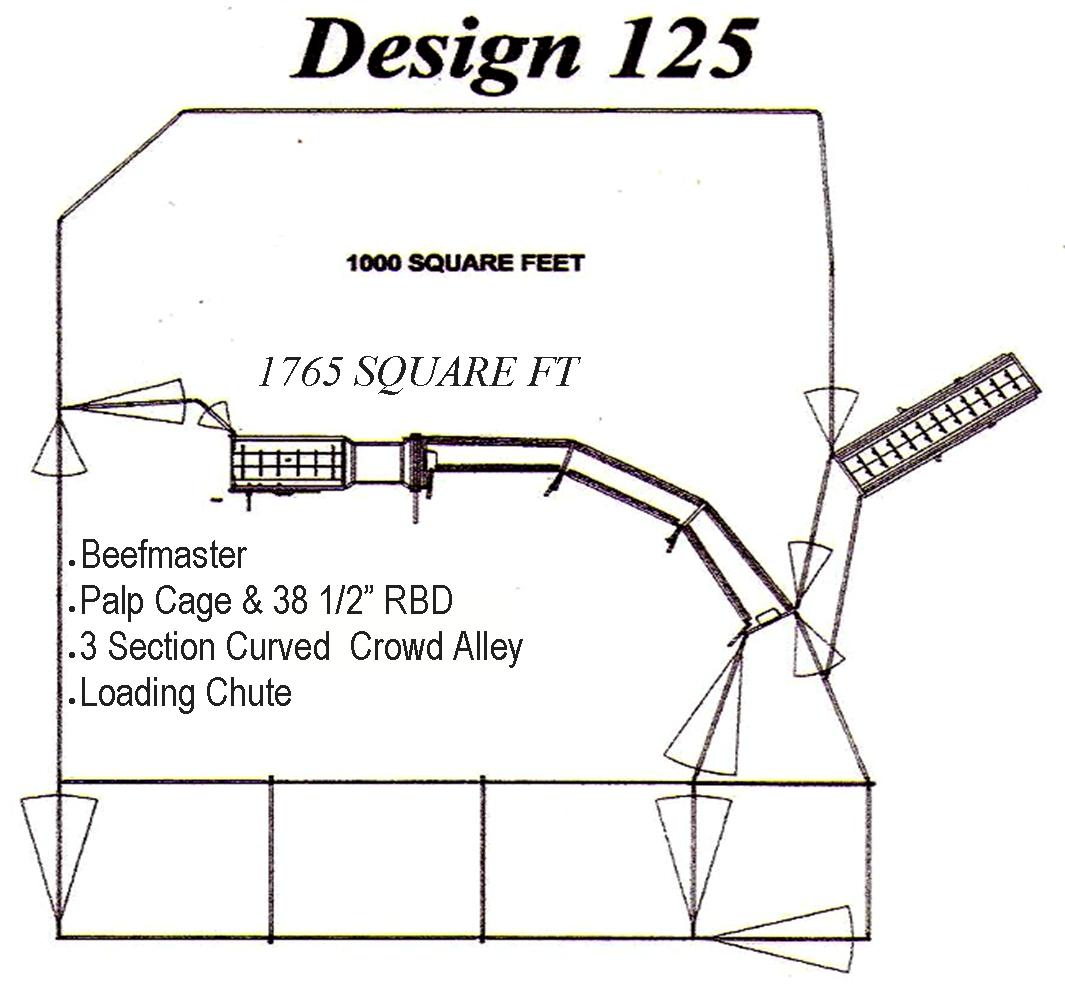

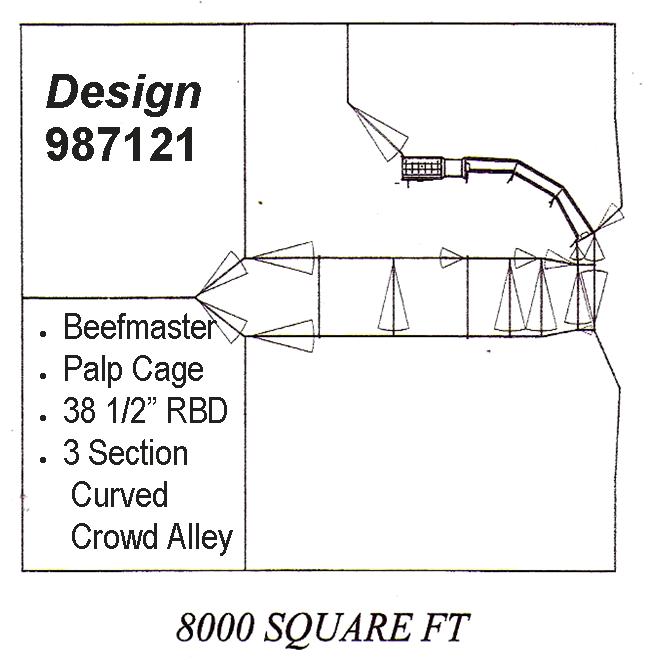

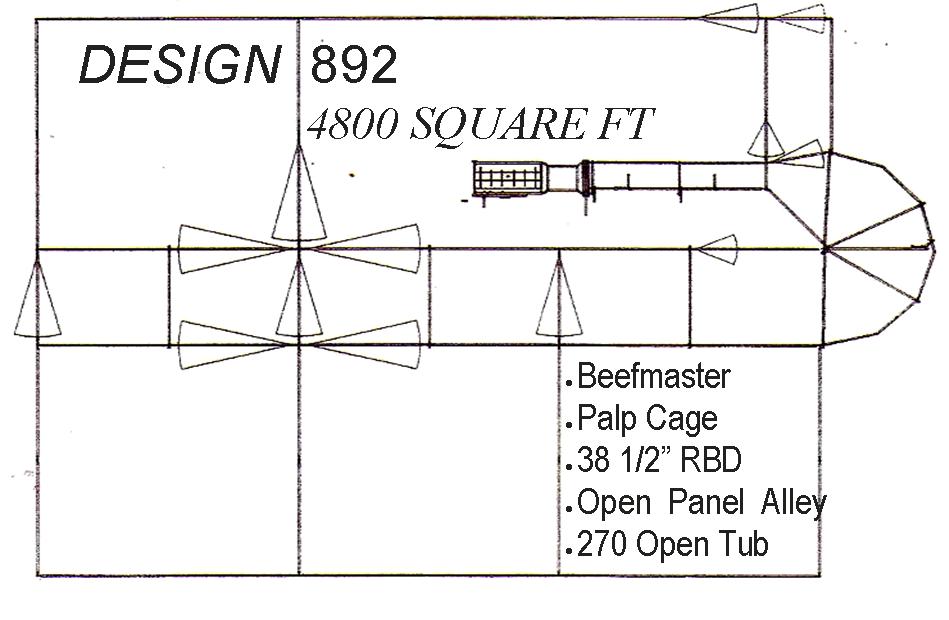

WW Livestock Systems Corral Designs

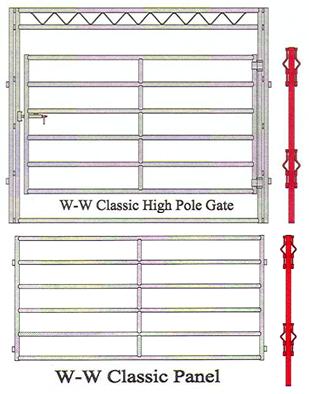

Classic Panels and Gates have long been the standard for competition to live up to in the Livestock Equipment Industry. These are the Gates and Panels which prestigious organizations such as the CBR depend on year after year. Crafted by professionals from the finest material available, the Classic Series is compatible with each component from the Chaparral Series. Spring-activated gate latches and 2" standard pipe hinges give WW gates trouble-free service. All WW panel and gate joints are saddle cut for extra strength. Choose a long lasting, attractive, powder coat finish pre-galvanized or hot dipped galvanized.

• Classic Features:
• 2" x 14 gauge material with 50,000 P.S.I. yield strength
• All posts have one, two, three and four-way pins
• Panels and gates mount 6' high on separate steel posts
• Ability to interchange panels and gates at any time without additional adapter or tools
• 7' 8" posts and 9' 6" posts designed to receive spreader bars and give stability to alleys


Beefmaster Chute With Sliding Tailgate

Palpation Cage

Classic RBD ( Rolling Block Door )

Beefmaster Chute XL-2VG Chute With Sliding Tailgate

WW Portable Loading Chute

Systems can be Customized & Upgraded Inc: Hydraulic Chutes or Full Sheeted Tubs

WW Products Video Showing

Working Systems
