WW Cattle Tie Panels
* Prices Plus Freight & Taxes , Prices Subject to Change W/Out Notice, All Prices Are CASH Prices *
WW Houston Style Cattle Tie Out Panels
| Part # |
Houston Style Tie Out Panels |
Retail |
Special |
| 8330-036-000 |
Tie Panel ACF 36" |
$332 |
$265 |
| 8330-048-000 |
Tie Panel ACF 48" |
$365 |
$290 |
| 8331-110-000 |
Tie Panel Front HD 10' |
$438 |
$350 |
| 8332-108-000 |
Tie Panel Divider HD 8' |
$417 |
$335 |
| 8331-210-000 |
Tie Panel Front Port. (Houston Style) 10' |
$554 |
$445 |
| 8332-208-000 |
Tie Panel Divider Port. (Houston Style) 8' |
$277 |
$220 |
* Call / Email us for a Price on the New Style
PMB Panels with Bases, and Special Show Ring Gate*
|

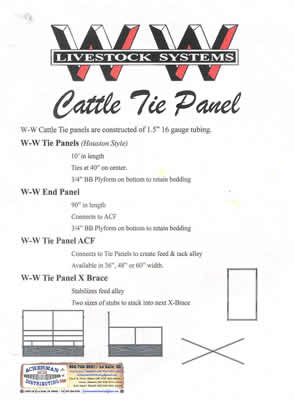

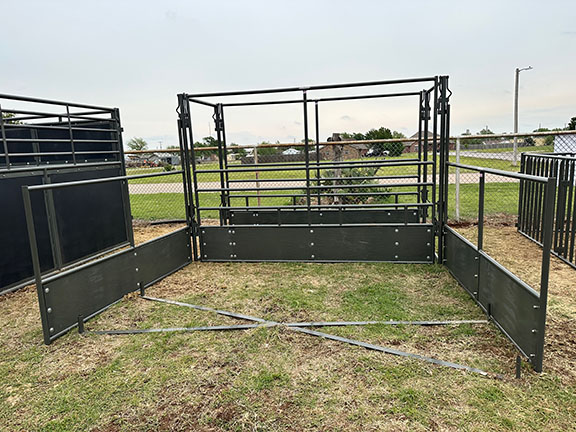

Houston Style Cattle Tie out Panels:
- Constructed from 1.5" 16 Gauge Tubing
- 50,000 PSI Yield Strength Steel, Saddle Cut Welds
- Dark Grey Powder Coat Paint
- 3/4" BB Plyform on Bottom to Retain Bedding
- Tie Panels 10' Long Ties 40" on Center
- End Panel 90" in Lenght - Connects to ACF

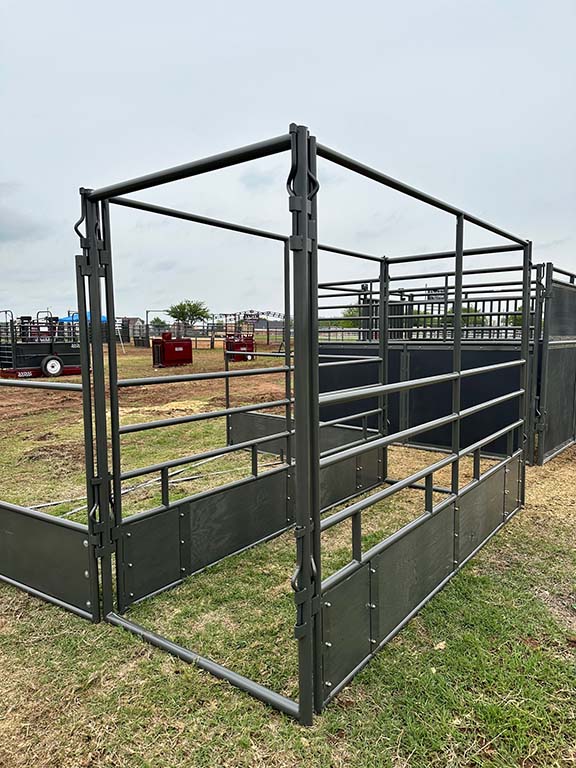

- ACF connects to Tie Panels to create
Feed and Tack Alley - Available in 36", 48" & 60"
- Tie Panel X Brace - Stabilizes the Alley
(two sizes to stack the next X Brace)
|
* Prices Plus Freight & Taxes , Prices Subject to Change W/Out Notice, All Prices Are CASH, Check or Wire Prices *
Coming Soon W-W PB New Style Arena Panel, Cattle Tie, & Base !

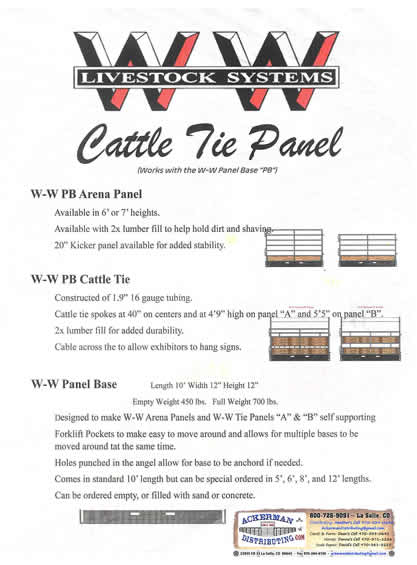

PB Style Arena Panel & Cattle Tie out Panels:
- Constructed from 1.9" 16 Gauge Tubing
- 50,000 PSI Yield Strength Steel, Saddle Cut Welds
- Dark Grey Powder Coat Paint
- 2x Lumber to Help Hold Dirt & Shavings
| Part # |
Cattle Arena & Tie Panels with PB |
Retail |
Special |
| |
10' Arena Panel 6" |
$ Call |
$ |
| |
10' Arena Panel 7" |
$ Call |
$ |
| |
10' Cattle Tie Panel (A) Style |
$ Call |
$ |
| |
10' Cattle Tie Panel (B) Style |
$ Call |
$ |
| |
W-W Fillable Panel Base (Sold Empty) |
$ Call |
$ |
* Call / Email us for a Price on the New Style
PMB Panels with Bases, and Special Show Ring Gate* |

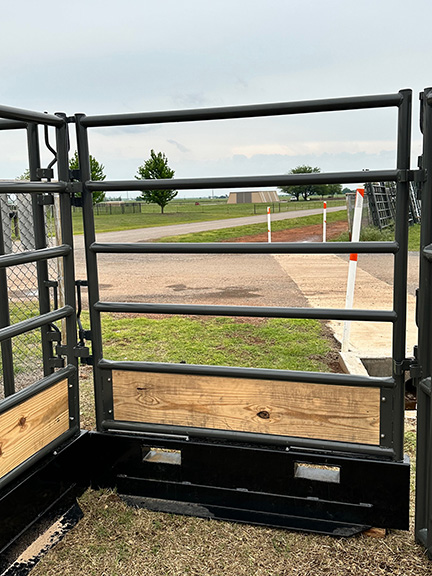

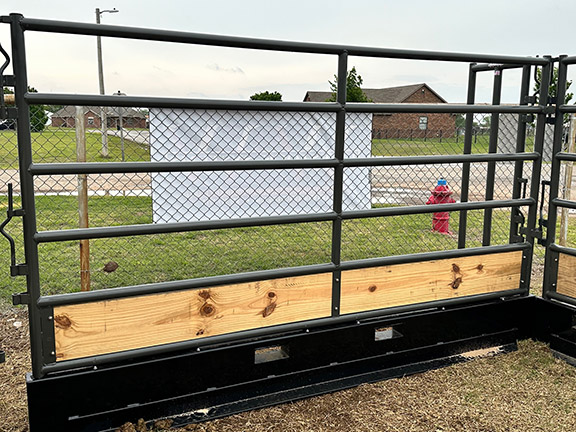

WW PB Arena Panel
- Available in 6' or 7' Tall
- 20" Kicker Panel Available for added Stability

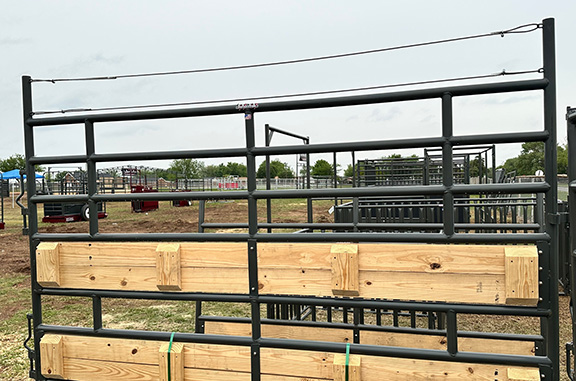

WW PB Cattle Tie
- Cattle Tie Spokes at 40" Centers
Available at 4'9" (Panel A) or 5' 5" High
(Panel B)
- Cable across for Exhibitors to Hang Signs
All the Arena & Cattle Tie Panels are Designed
to work with the NEW W-W PB "Panel Base"
- 10' Long x 12" Wide x 12' High
- Empy Weight 450lbs. - Filled 700lbs
- Can Fill with Dirt, Sand, Water or Concrete
- Easy to Move with Forklift Pockets
- Holes Predrilled in Angle Iron for Easy Mounting if Needed
- Can be Special Ordered in 5', 6', 8', & 12' Lengths
- Designed to make W-W Tie Panels (A & B) Self Supporting
|
|
