The Jug Waterer : for beef cattle, dairy, cattle, horses, and sheep.

Jug ~ One Hole Capacity: 40 - 50 head beef 20 - 25 head dairy 70 - 75 head sheep Gallons: 7 Size: 25 " X 20 " X 23 " tall Weight: 47 lbs. 101 One Hole Energy Free # 10101 - Retail $844 ... Special $760 + Freight 101 One Hole with Heat # 10111 - Retail $918 ... Special $825 + Freight UPS Estimated $ 60 - $ 70/ea Approximate freight charges may vary.	Jug ~ Two Hole Capacity: 80 - 100 head beef 50 - 60 head dairy 140 - 150 head sheep Gallons: 16 Size: 41" X 20" X 23" tall Weight: 74 lbs. 202 Two Hole Energy Free # 10202 - Retail $1,272 ... Special $1,145 + Freight 202 Two Hole with Heat # 10222 - Retail $1,347 ... Special $1,210 + Freight UPS Estimated $ 100 - $ 120/ea Approximate freight charges may vary.	Jug ~ Four Hole Capacity: 160 250 head beef 100- 150 head dairy 200 - 250 head sheep Gallons: 45 Size: 39" X 37" X 23" tall Weight: 110 lbs. 404 Four Hole Energy Free # 10404 - Retail $1,632 ... Special $1,470 + Freight 404 Four Hole with Heat # 10444 - Retail $1,708 ... Special $1,535 + Freight UPS Estimated $ 140 - $ 160/ea Approximate freight charges may vary.

* Prices Plus Freight & Taxes , Prices Subject to Change W/Out Notice, All Prices are Cash/Check Discount Prices*

Thermal energy, Not electric energy ! It's like a Thermos JUG. The "Draw Tube" is really three tubes. Two copper and one CPVC. As the water gets cold in the drinking bowl, it becomes heavier and sinks down the CPVC tube forcing the warm tank water up the copper tubes into the drinking bowl. This keeps the water in the bowl from freezing by slowly circulating it and replenishing it with warmer water from the bottom of the reservoir. No lids, flaps, or balls for the animal to move ! In addition, the copper tubes are designed with a large surface area in the Feed Trap. Since copper is an excellent heat conductor, heat is transferred from the tank water to the trap area through the copper tube walls. For Energy Free Models in marginal climates, you need enough animals drinking to keep water in the tank warm enough to provide heat energy (At least 15 head per drinking bowl.) Otherwise a small 65-watt heater may be added to make the JUG Energy Efficient. In either case it is primarily thermal energy, not electrical energy keeping the water fresh and at a constant temperature, summer and winter. The average electrical cost for a JUG Livestock Waterer is $10.00 for the Entire Season. The Jug is super insulated with urethane foam to conserve heat loss, and is very reliable in extreme cold and wind chills.

&Taxes , Prices Subject to Change W/Out Notice, All Prices are Cash/Check Discount Prices*

Part # PARTS $ 10640 JUG Thermostat $35 10709 Basic Float Valve $53 10710 Complete Float Valve $67 10707 Float Valve Base $33 10703 Arm Pin Diaphragm  $24 10720 Diaphragm $5 10880 Drain Plug $13 10705 Front Half Float Valve $38

Heavy Duty Shut Off / Drains  Part # Description List Special 12003 3 FT HD Shut Off / Drain $232  $209 12004 4 FT HD Shut Off / Drain $252  $227 12006 6 FT HD Shut Off / Drain  $265  $239 12007 7 FT HD Shut Off / Drain $273  $246 Earth Tubes  Part # Description List Special 10021 2 FT Insulated  $97  $87 10031 3 FT Insulated  $128  $115 10041 4 FT Insulated  $159  $143 10020 2 FT Uninsulated  $72  $65 10030 3 FT Uninsulated  $102  $92 10040 4 FT Uninsulated  $133  $120 10000 Coupler  $ 20.50 Accessories 101-404 Part # Description $ 10500 Shut Off Ball Valve  $13   10510 Top Mounting Bracket $28 10525 Anchor Bolt Kit (Wet Concrete) $69    24404 4 FT Air Space Heater, 36 Watt $35 24405 5 FT Air Space Heater, 42 Watt $36   10575 Heater / Thermostat Kit  $72    10665 65 Watt Heater  $41

* Prices Plus Freight & Taxes , Prices Subject to Change W/Out Notice, All Prices are Cash/Check Discount Prices*

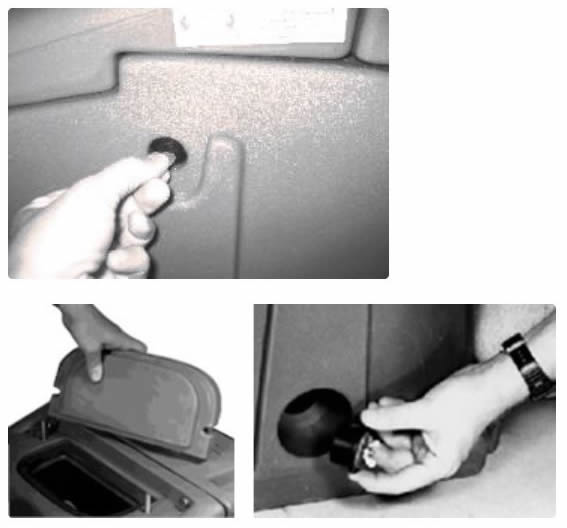

Features of the JUG External Adjustment Screw JUG Livestock Waterers have an external adjustment screw. Simply turn the screw with a coin or screwdriver. It is not necessary to remove the lid to raise the water level in the drinking bowl. When the animals know the JUG is their drinking station, return the water to its lower operating level to minimize the amount of water exposed to the weather. Inspection Cover The JUG has an inspection cover that can be easily removed for inspection and service to the float valve. External Drain Plug The External Drain Plug allows easy draining of the water from the JUG tank. The JUG's design keeps the water free from feed or hay, but most water has iron bacteria which will leave a residue in the tank over time. It is therefore wise to drain the tank periodically.

** Click here to View the Full 101-404 Brochure and Installation Information **

** Click here to View 101-404 Operation Manual **

* Prices Plus Freight & Taxes , Prices Subject to Change W/Out Notice, All Prices are Cash/Check Discount Prices*

303 Corner Mount Installation: Energy Free Units There are a number of waterline hook up options when placing an Energy Free 303 in a heated barn or in a warm climate area. The waterline can come from underneath either on its own or through a riser tube, but commonly comes to the 303 overhead. Gallons: 2 303 Corner Mount Energy Free # 13303 Retail$ 449 ... Special $405 + Freight 303 Corner Mount with Heat # 13333 Retail $ 518... Special $465 + Freight UPS Estimated $ 40 - $ 50/ea Approximate freight charges may vary. Installation: With Heat Units Water and electric lines run underground below frost line, then up into the fountain through the Riser Tube. The 303 Riser Tube protects the water supply line from the cold by insulating it in urethane foam, and warming it with a low wattage heating element.	303 Flat Back Mount Modern, Yet Simple The 303 JUG features the most modern up to date styling available in a horse stall waterer. Yet the 303 is extremely simple with very few moving parts. Gallons: 2 303 Flat Back Energy Free # 13313 Retail $ 598 ... Special $540 + Freight 303 Flat Back with Heat # 13343 Retail $ 667 ... Special $600 + Freight UPS Estimated $ 40 - $ 50/ea Approximate freight charges may vary. Super insulation provides protection against freeze ups, lowers energy costs in the winter, and provides cooler water in the summer.	Stall Riser Tubes Rugged 1/4" PVC Sch 80 case. # 13003 3 FT Insulated $ 178 $160 # 13004 4 FT Insulated $ 191 $170 # 13005 5 FT Insulated $ 204 $185 # 13006 6 FT Insulated $ 219 $195 # 13007 7 FT Insulated $ 232 $210 Above Prices Plus Freight Stall Riser Accessories & Heaters # 13550 Wall Mounting Kit $ 24 # 13410 Digital Water Meter $89 # 24402 2 FT Heater (24 Watt) $31 # 24403 3 FT Heater (30 Watt) $32 # 24404 4 FT Heater (36 Watt) $35 # 24405 5 FT Heater (42 Watt) $36 # 24406 6 FT Heater (48 Watt) $39 # 24408 8 FT Heater (64 Watt) $44 Above Prices Plus Freight

* Prices Plus Freight & Taxes , Prices Subject to Change W/Out Notice, All Prices are Cash/Check Discount Prices*

** Click here to View the Full 303 Brochure and Installation Information **

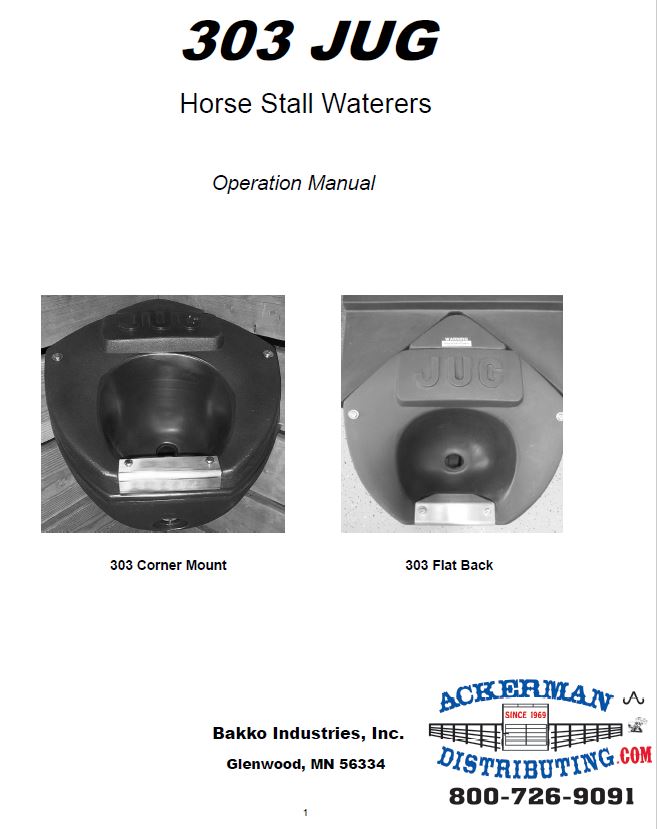

** Click here to View 303 Operation Manual **
