![Kwik-Till High Speed Tillage Disk](../images/kwik-till/Kwik-Till-4.jpg)
![](../images/other/barbwire.jpg)

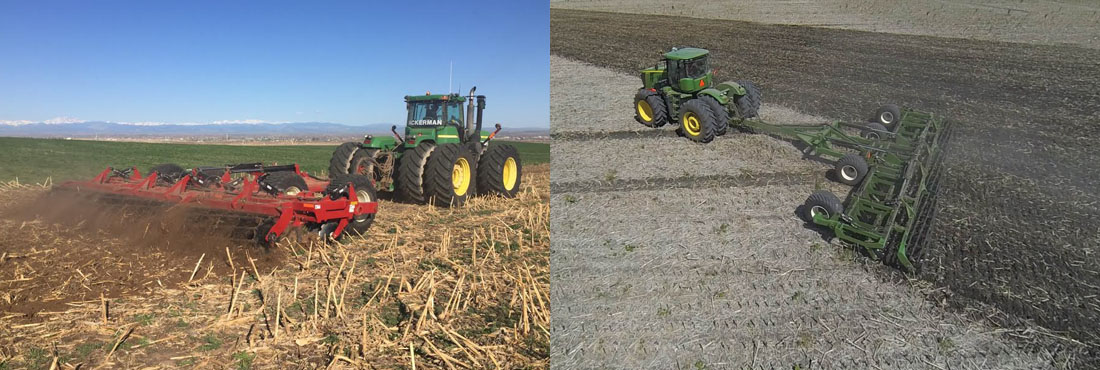

Kwik-Till High Speed Tillage Disk
- 10-15 Mph
- Upto 75 Acres Per Hour
- Maintance-Free Disc Hub
- High Flotation Tires
- Independent Rubber Torsion Suspension
- 20" Notched Flat Center Disc Blades
- 20" Smooth Flat Center Disc Blades
- Vertical Hydraulic Jack
- Cage Rollers
- Spring Rollers
|
Video of the Kwik-Till High Speed Tillage Disk
|
![](../images/other/barbwire.jpg)
![Kwik-Till Independent Rubber Torsion Suspension](../images/kwik-till/Kwik-Till-Torsion.jpg) |
Independent Rubber Torsion Suspension
- Four natural rubber elements provide a pretension.
- Allowing the discs to follow the contour of the land, skate over obstructions and spring back to operating positions.
- Each shank is independent allowing for idea flow of residue
|
|
![Kwik-Till 20" Notched Flat Center Disc Blades - 20" Smooth Flat Center Disc Blades](../images/kwik-till/Kwik-Till-Disc.jpg) |

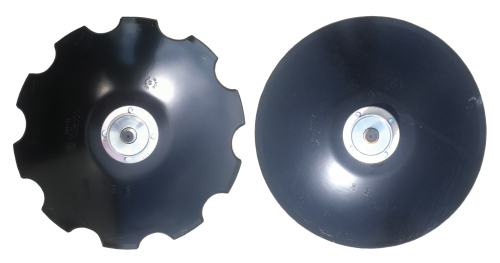

20" Notched Flat Center Disc Blades
- Provides aggressive control over soil tillage.
- The disc option does an excellent job in soil penetration and residue management
20" Smooth Flat Center Disc Blades
- Provides careful control over soil tillage.
- The disc option does an excellent job in tilling and inverting soil.
|
|
![](../images/other/barbwire.jpg)
![Kwik-Till Maintance-Free Disc Hub Relubrication-Free](../images/kwik-till/Kwik-Till-Hub.jpg) |

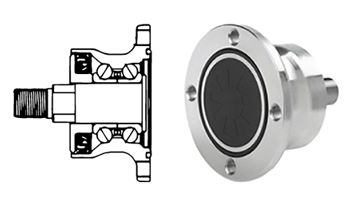

Maintance-Free Disc Hub Relubrication-Free
- Anti-String flange shape
- High performance seals
- Plating corrosion resistant to jet cleaning & fertilizers
- Increase farm productivity by up to 150%
- Ownership costs reduced by up to 30%
- Management costs reduced by up to 90%
- Low environmental impact
|
|
![Kwik-Till High Flotation Tires](../images/kwik-till/Kwik-Till-Tire.jpg) |
High Flotation Tires
- Goodyear Superflot AG Tires
- Unsurpassed Flotation
- Large contact area
- Excellent weight distribution for reduced ground-bearing pressure & less soil compaction
|
|
![](../images/other/barbwire.jpg)
![Kwik-Till Vertical Hydraulic Jack](../images/kwik-till/Kwik-Till-Hitch-Lift.jpg) |

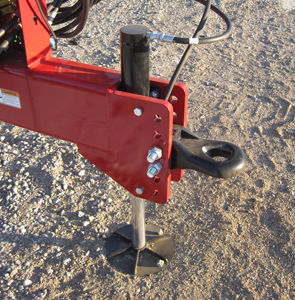

Vertical Hydraulic Jack
- Provides quick, easy disconnection from tractor.
- Lifts vertically without moving machine back and forward.
- Less moving parts for a simpler more reliable operation.
|
|
![Kwik-Till Maintance-Free Disc Hub Relubrication-Free](../images/kwik-till/Kwik-Till-Rollers.jpg) |

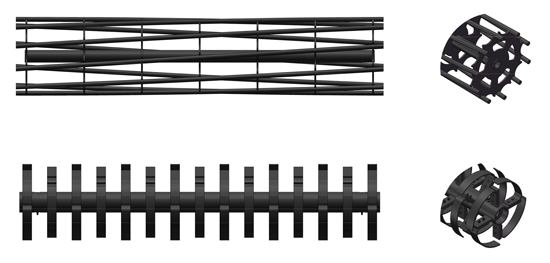

Cage Rollers
Works best in Dry, Non-sticky soil conditions. Cage ensures disintegration of any clumps, provides an even seedbed and moderate compaction.
Spring Rollers
Works best in heavier, dense soil conditions. Spring Rollers create a level seedbed with moderate consolidation.
|
|
![](../images/other/barbwire.jpg)
![Kwik-Till hown Folded Up and also Available in Multiple Colors](../images/kwik-till/colors.JPG)
Shown Folded Up and also Available in Multiple Colors |
![Kwik-Till Wings follow the contour of the ground](../images/kwik-till/conture.JPG)

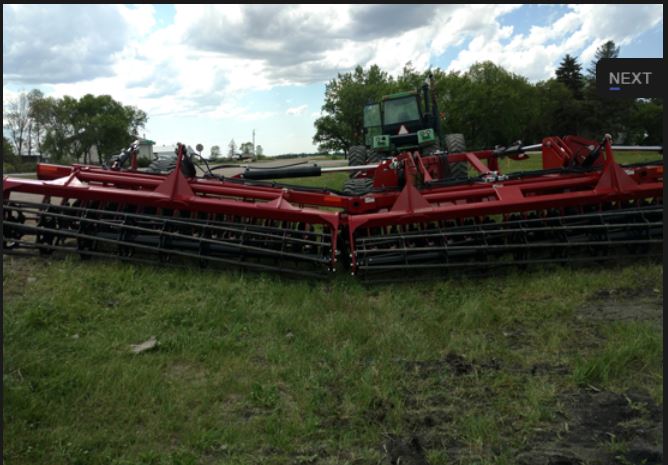

Wings follow the contour of the ground |
![](../images/other/barbwire.jpg)
![Kwik-Till Corn Field (Before/After)](../images/kwik-till/cornstalks.JPG)

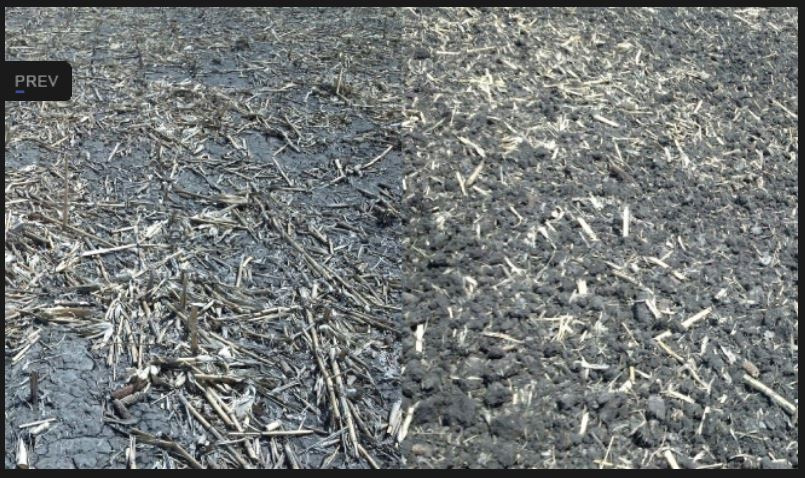

Corn Field (Before/After)
|
![Kwik-Till Wheat Field (Before/After)](../images/kwik-till/wheat.JPG)

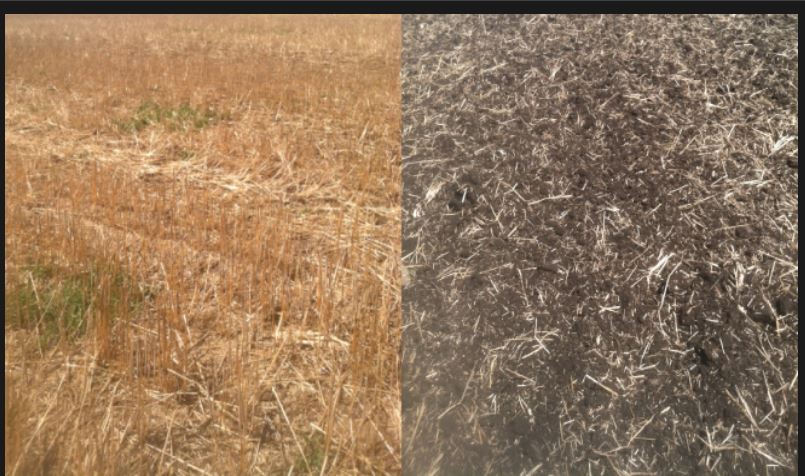

Wheat Field (Before/After) |
![](../images/other/barbwire.jpg)
![Vertical Hydraulic Jack](../images/kwik-till/kwik-till.JPG)
Click Here for Kwik-Till Brochure |
Model |
Working Width |
Tongue Weight |
Overall Weight |
800 - 3PT |
8'-4" |
|
4,800 lbs |
1000 - 3PT |
10'-0" |
|
5,010 lbs |
1200 - 3PT |
12'-7" |
|
5,950 lbs |
800 |
8'-4" |
1,370 lbs |
7,325 lbs |
1000 |
10'-0" |
1,500 lbs |
8,020 lbs |
1200 |
12'-7" |
1,580 lbs |
8,460 lbs |
1600 |
15'-11" |
1,800 lbs |
15,000 lbs |
1775 |
17'-7" |
2,000 lbs |
15,600 lbs |
2100 |
20'-11" |
2,600 lbs |
16,800 lbs |
2400 |
24'-4" |
3,200 lbs |
17,800 lbs |
2500 |
25'-0" |
3,400 lbs |
21,100 lbs |
3000 |
30'-0" |
4,500 lbs |
23,100 lbs |
3500 |
35'-0" |
5,200 lbs |
28,100 lbs |
4000 |
40'-0" |
6,800 lbs |
34,400 lbs |
4500 |
45'-0" |
7,700 lbs |
35,400 lbs |
|
|
|
|
